SM2100 Shoulder Paver

The ShoulderMaster SM2100 is a skidsteer/wheeled loader shoulder paving attachment that can increase the roads shoulder from 1'6" to 7'6" wide, laying either gravel or asphalt materials.

The screed has been designed to drop 6" below and 4" above existing pavements to allow materials to be placed in multiple layers with gradients up to 5%.

Technical Specifications

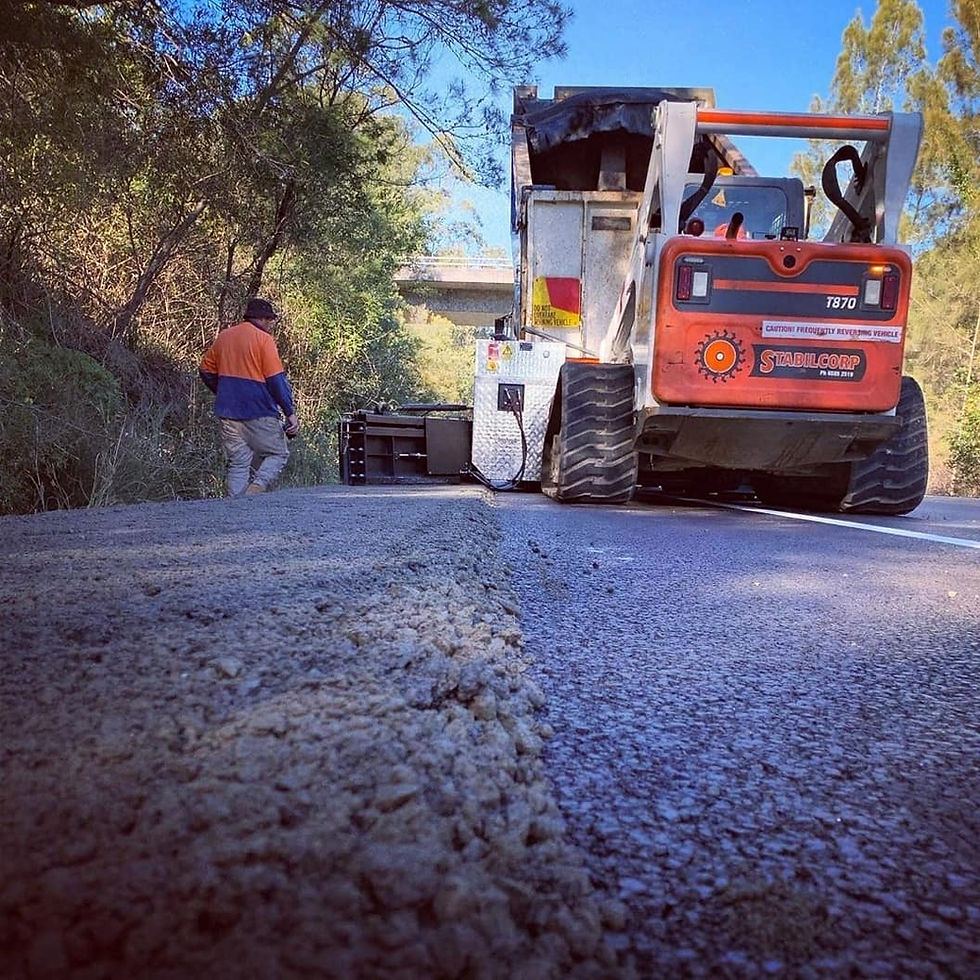

ShoulderMaster USA Paver at work roadwidening

Tare Weight

4,365lbs

Length

10'2"

Width

6'9"

Height

3'9"

Screed Width Adjustment

1'6" to 7'6"

Screed Height Adjustment relative to pavement level

-6" to +4"

Minimum Power Requirement

55kw

Optimal Hydraulic Flow

21gal/minute

Screed Slope Adjustment

Drive Mechanism

Reduction gearbox (chain & sprocket)

Conveyor

Chain drive with heat resistant belt

Safety

E-Stop

Electrical Connection

12V

500mm Ext. on Adjstable Screed #2 forom ShoulderMaster USA for road widening

Hydraulic Screed Single Side Feed

ShoulderMaster SM2100 Skid Steer Paving Attachment Includes:
   - Left hand hydraulic adjustable
   screed up to 5'9"

   - Left hand 1'6" extender box
   (increases screed width to 7'6")
   - Screed end plate
   - Remote control operations
   - Video camera with wireless monitor
